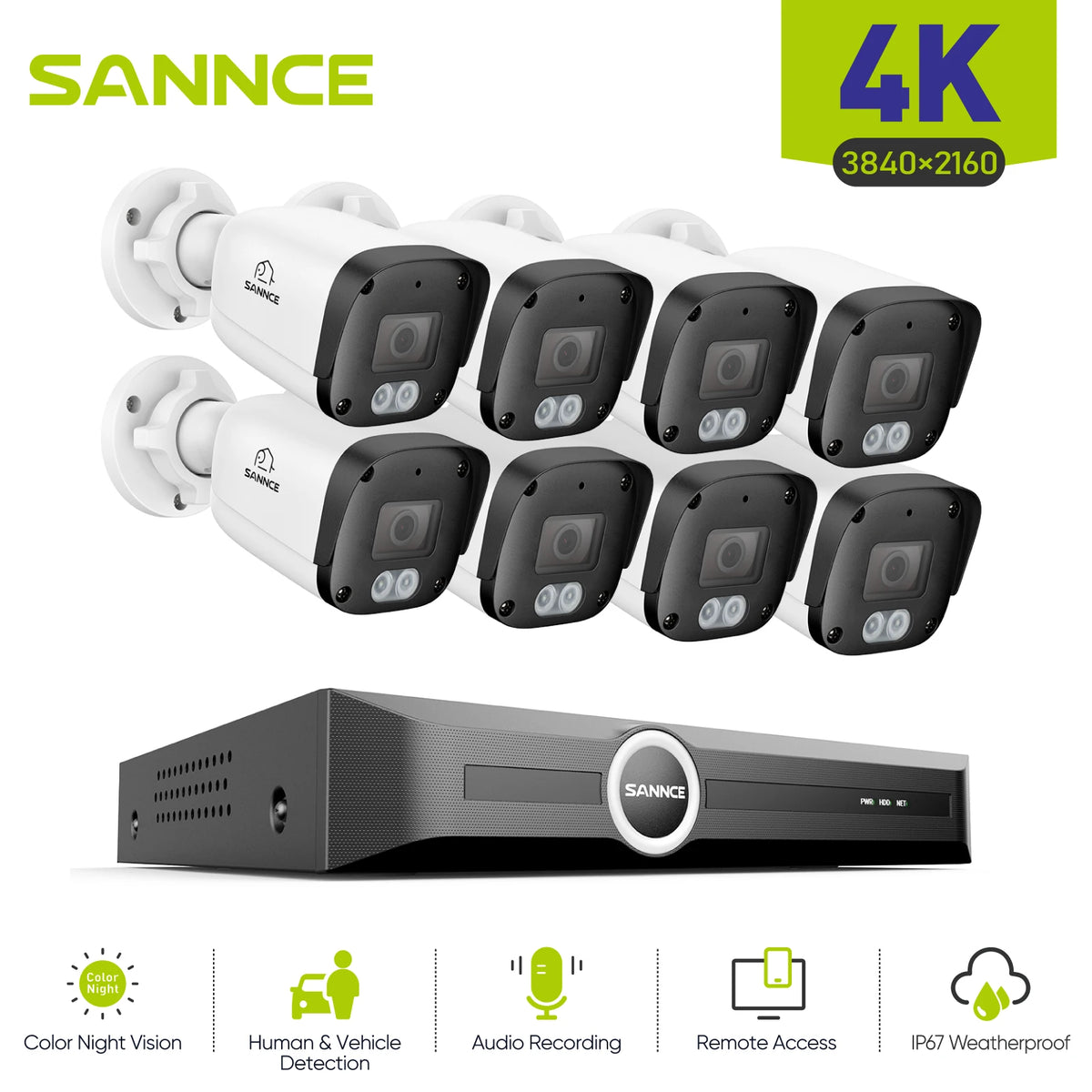

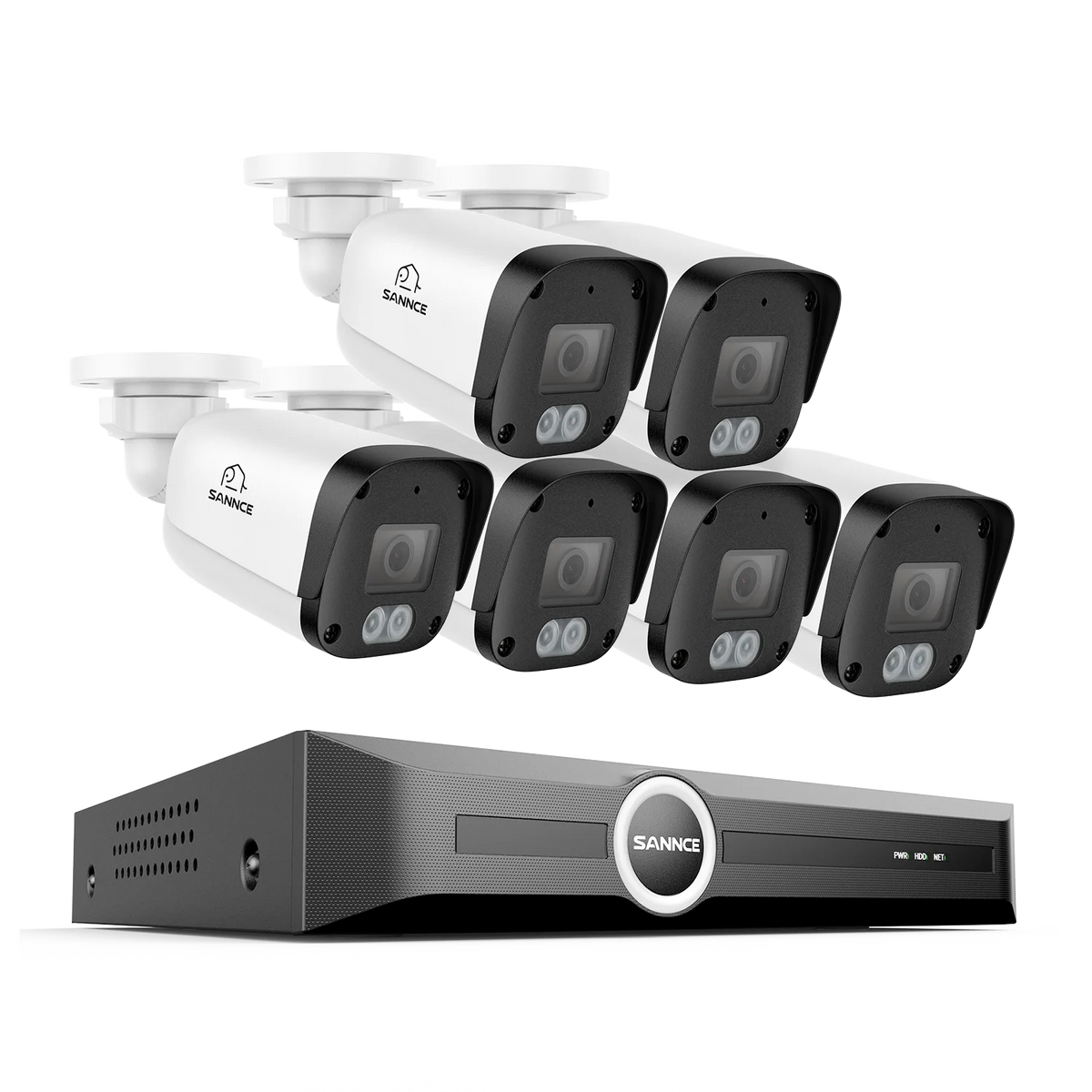

Sannce 8MP PoE Outdoor Security Camera And 8Ch Nvr
Sannce 8MP PoE Outdoor Security Camera And 8Ch Nvr
Couldn't load pickup availability
Secure your property with clear 8MP surveillance that captures vital details day or night using Smart Dual Light technology.
- You link compatible cameras to the 8-channel NVR via Power over Ethernet, eliminating extra wiring while you view all feeds on two monitors through HDMI and VGA outputs.
- A 2.8mm lens expands your coverage to a 128.7° field of view, ensuring you record wide areas clearly while capturing crisp audio through the built-in microphone.
- S+265 compression cuts storage requirements by seventy-five percent, helping you retain months of footage without manually purging older clips.
- Smart motion filters separate actual intruders from swaying branches, so you receive relevant alerts instantly, and the IP67 shell protects your setup against harsh conditions.
Model Number |
N98PBN |
|
NVR | ||
Video & Audio |
Decoding Format |
S+265; H.265; S+264; H.264 |
IP Video Input |
8CH PoE |
|
Video Output |
HDMI: 1024×768(60Hz), (720P)1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz), (4K)3840×2160(30Hz) |
|
VGA: 1024×768(60Hz), (720P)1280×720(50Hz/60Hz), 1280×800(60Hz), 1366×768(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz), (4K)3840×2160(30Hz) | ||
Audio |
G.711A; G.711U; ADPCM_D |
|
Incoming/outgoing Bandwidth |
60/40 Mbps |
|
Max Recording Resolution |
8MP(30fps)×1,6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×8, 4CIF(30fps)×8 |
|
Max Playback Resolution |
8MP(30fps)×1, 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×4, 4CIF(30fps)×4 |
|
Third-party Camera Access |
ONVIF(Profile S/T); RTSP |
|
Record Playback |
Multi-channel Playback |
4 |
Record Mode |
Alarm Recording; Schedule Recording |
|
Storage Method |
Local HDD |
|
Backup |
USB storage device |
|
Playback Function |
Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Digital |
|
Alarm |
General Alarm |
Motion Detection; Mask Alarm; Alarm Input(IPC) |
Exceptions Alarm |
Video Loss; IP Conflict; MAC Conflict; Network Disconnected; No Disk; Illegal Access; Disk Full; Disk R/W |
|
Storage |
HDD |
1 SATA Interface |
HDD Capacity |
Up to 8 TB capacity for each HDD |
|
Network |
Network Protoco |
ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SSH; TCP/IP; |
Mobile Phone Access |
Android; iOS; P2P |
|
System Compatibility |
CGI; SDK |
|
Web |
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
|
External Port |
USB |
2×USB2.0 |
HDMI |
1×HDMI(supports up to 4K resolution output) |
|
VGA |
1×VGA |
|
Network Interface |
1×RJ-45, 10/100 Mbps self-adaptive Ethernet port |
|
PoE |
PoE Interface |
8×RJ45, 10/100 Mbps self-adaptive Ethernet port |
PoE Budget |
72W |
|
Power per PoE Port |
30W |
|
Standard |
IEEE 802.3 af/at |
|
General |
UI Language |
English;German; French;Italian;Spanish |
Operating Power |
DC48V 1.875A |
|
Power Consumption |
<10W(without HDD&without PoE) |
|
Working Temperature |
10 °C to 55 °C (14 °F to 131 °F) |
|
Dimensions (W X H X D) |
225 mm × 231 mm × 45.1 mm |
|
Weight (Without Hard Disk) |
kg |
|
Model Number |
I91FW |
|
IP Camera | ||
Camera |
Image Sensor |
1/2.7" Progressive Scan CMOS |
Main Stream |
50 Hz:20fps（3840x2160）,25fps(3200x1800，2880x1620，2560×1440, 2304×1296, 1920×1080, 1280×720) |
|
Sub-stream |
50 Hz: 25fps(704×576, 704×288, 640×360, 352×288) |
|
Wide Dynamic Range |
DWDR |
|
Electron Shutter |
1s～1/100000s |
|
Min. Illumination |
Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR |
|
White Balance |
Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/ Lock White Balance |
|
Defog |
Yes |
|
Privacy Mask |
4 black static areas |
|
Number of Infrared LEDs |
2 pcs |
|
Supplement Light |
Smart Dual Light IR 30m, White light 20m |
|
Lens |
focal length |
2.8mm Fixed Focal Length Lens |
Angle of View |
Horizontal FOV 112.1°, vertical FOV 60.4°, diagonal FOV 128.7° |
|
Aperture |
F1.6 |
|
Lens Mount Types |
M12 |
|
Interface Performance |
Network Port |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
Audio Port |
Built-in MIC (Pickup Distance of 5m) |
|
Extended Protocol |
Onvif Profile S/T、CGI |
|
Coding Mode |
Video Compression |
S+265/H.265/H.264B/H.264M/H.264H |
Video Bitrate |
32Kbps~6Mbps |
|
Audio Compression Algorithm |
G.711A/G.711U/ADPCM_D |
|
Audio Sampling Rate |
8kHz |
|
Other Functions |
IE Access |
IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
IP Address |
Support static and dynamic IP addresses, and custom network cards |
|
Network Protocol |
RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast |
|
System Time Clock |
NTP Time Calibration, Time Zone Setting, Daylight Saving Time |
|
Remote Administration |
Network Remote Upgrade, Parameter Settings, and Configuration Import and Export |
|
Smart Analysis |
human & Vehicle Detection |
|
General Functions |
Support snapshot, one-key recovery, password protection, IP blacklist and whitelist filtering, IP auto-adaptation, and heartbeat. |
|
General |
Housing |
Metal & Plastic |
Color |
White & Black |
|
Operating Power |
PoE (802.3af), Max. 5W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67, Level 4 Lightning Protection, Surge Protection up to 2KV. |
|
Dimension (L X W X H) |
6.46" X 2.87" X 2.87"/ 164 X 73 X73mm |
|
Weight |
0.66 lb./300g |
|
